ACT Subaru 04-20 WRX STI Mod Twin HD Street Kit Sprung Mono-Drive Hub Torque Capacity 700ft/lbs

0 Reviews
On BackorderEarn 992 Build Bucks
ACT T1S-S05 Transmission Clutch Kit for the 2004-2020 Subaru WRX STI. Mod-Twin HD Street setup with a sprung Mono-Drive hub, light pedal effort, progressive engagement, and 700 ft-lbs torque capacity.
Martini Fitment Check
|
Make sure this fits

Added To Cart

ACT Subaru 04-20 WRX STI Mod Twin HD Street Kit Sprung Mono-Drive Hub Torque Capacity 700ft/lbs
1 x $1984.00
Customers also bought
Caramel House Blend
MartiniWorks CoffeeMade with Motovator, family-owned in Appleton, WI
$20.00
Save up to $0.00 when packaging with a set of 4 wheels & tires!
Quantity
$1984.00
×

Get The Homie Hookup

No deals available at this time.

Want to learn more about this product & stay up to date on future promos? Well friend, add your email and we'll be in touch with the best emails!
Note: You can opt-out at any time. See our Privacy Policy.

What cars does this fit?

All Compatible Vehicles (35 total)

Compatible Vehicles
2021 Subaru WRX STI Base
2021 Subaru WRX STI Limited
2020 Subaru WRX STI Base
2020 Subaru WRX STI Limited
2019 Subaru WRX STI Base
2019 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2018 Subaru WRX STI Base

Product Description

ACT T1S-S05 Mod-Twin HD Street Kit for the 2004-2020 Subaru WRX STI. This is a Transmission Clutch Kit built around ACT's modular twin-disc layout, with two friction plates and a sprung Mono-Drive hub, rated for 700 ft-lbs of torque capacity.

  • Street-focused engagement: Soft, progressive engagement with light pedal effort. It is set up for smooth shifts and OE to mild transmission gear noise, which matters on a street-driven STI.
  • Sprung Mono-Drive hub: The spring-center hub cushions torsional vibration, reducing driveline shock and helping support input-shaft life compared with a rigid hub setup.
  • Twin-disc design: Two friction plates share the torque load while retaining the engagement quality expected from a street or street/strip clutch.

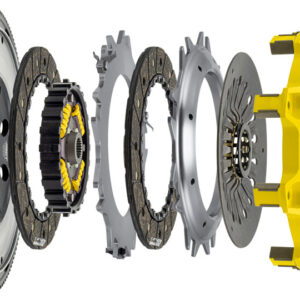

  • Clutch hardware: The kit includes a CNC-machined, dynamically balanced flywheel, pressure plate cover, diaphragm spring, floater, Monoloc Collar, release bearing, alignment tool, and pilot bearing when required.
  • ACT construction: The cover is forged aluminum with an integrated nine-post design. Chromoly steel floaters are machined to specification for flatness under thermal stress, while the diaphragm spring receives ACT's four-stage heat-treatment process.
  • Serviceability: This stuff is fully rebuildable, and many Mod-Twin components are available separately. That is useful when the clutch eventually needs service instead of replacing an entire non-serviceable assembly.

ACT clamp-load tests and balances each Mod-Twin assembly, and this kit is SFI certified. For an AWD STI that needs twin-disc capacity without going straight to a rigid-hub, race-oriented setup, the sprung hub and progressive engagement are the parts you will notice every time you leave a stoplight.
